High Resolution Flexible LED Display For Commercial Advertising /Animation

  • 1
  • 2
  • 3

Brand Name : BST

Model Number : FL-6

Certification : CE,FCC, CCC, Rohs,ISO

Place of Origin : Shenzhen, China

MOQ : 1sqm / Piece

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000sqm per month

Delivery Time : 7 - 20 days

Packaging Details : wooden case

Warranty : 2 years

Driving method : 1/8 scan, constant current

LED Type : SMD3528

Brightness : 1500nits /sqm

Module size : 320mmX160mm

Color : Full Color

Refresh rate : >1920Hz

Contact Now

High Resolution Flexible LED Display For Commercial Advertising /Animation

Flexible LED Display Quick Detail:


1. Flexible and bendable

2. Super thin and light
3. Very easy to splice, install and maintain

4. High brightness
5, Wide application

Flexible LED Display Description:

1. Flexible module, can make any sharp design.
2. High reliability: Average time between failures(MTBF)is 2 years at least
3. Long life time: Normal lifespan should be more than 8 years
4. Energy saving: 51% energy saving, lowering operation cost significantly
5. Easy to install: Stacking installation design enables easier installation

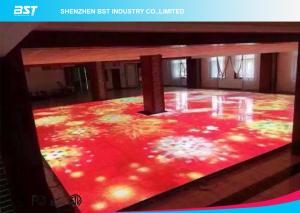

Flexible LED Display Applications:

Commercial advertising, animation, advertising, stage backdrop, stadium, business establishments,TV shows, car shows, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,Stadium perimeter, etc

Flexible LED Display Specification:

SPECIFICATION
FL-2 FL-4 FL-6
Physical Pitch 2.5mm 4mm 6.66mm
Pixel Configuration SMD2121 SMD2121 SMD3528
Pixel Density 160,000pixels/sqm 62,500 pixels/sqm 22,500 pixels/sqm
Module Dimensions
(WXH)(mm)
240X120 240X120 320X160
Panel Dimensions(mm) Customized Customized Customized
Physical Resolution
of Module(WXH)
96X48 60X30 48X24
Weight 8.2kg/sqm 8.2kg/sqm 8.2kg/sqm
Processing 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000:1 4,000:1 4,000:1
Average Power
Consumption
9W 10W 10W
Max Power
Consumption
12W 13W 13W
Refresh Rate >1920Hz >1920Hz >1920Hz
Brightess ≥1,000nits ≥1,500nits ≥1,500nits
Driving Method 1/40 1/8 1/8
Horizontal Viewing
Angle
160° 160° 160°
Vertical Viewing
Angle
140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs
Servicing Front Front Front
IP Rationg
(Front/Rear)
IP 40 IP 40 IP 40
Operation Temp/
Humidity
—20℃-60℃ /10%-60% —20℃-60℃ /10%-60% —20℃-60℃ /10%-60%
Storage Temp/
Humidity
—30℃-60℃ /10%-60% —30℃-60℃ /10%-60% —30℃-60℃ /10%-60%
Certification CCC,CE,ETL,ROHS CCC,CE,ETL,ROHS CCC,CE,ETL,ROHS

High Resolution Flexible LED Display For Commercial Advertising /Animation
